Features and uses:

天美MV乌鸦MV星空MV果冻MV|白晶晶mv果冻免费|九一制片制作白晶晶|九一果冻制品厂更新|九一果冻制作厂白晶晶1. Precision rubber plastic: length, width, height, thickness, radian, distance, positivity, color difference analysis, coarse analysis

天美MV乌鸦MV星空MV果冻MV|白晶晶mv果冻免费|九一制片制作白晶晶|九一果冻制品厂更新|九一果冻制作厂白晶晶2. Precision mold: length, width, height, thickness, radian, distance, positivity

天美MV乌鸦MV星空MV果冻MV|白晶晶mv果冻免费|九一制片制作白晶晶|九一果冻制品厂更新|九一果冻制作厂白晶晶3. PCB: plate thickness, tin point diameter area alignment, line width, V-cut,Lay out, gold finger, surface defect observation

4. Inspect the size of the mask screen and observe the surface defects

5. Inspect the size of semiconductor packaging wire rack, observe surface defects and take photos

6. Hardware stamping parts: length, width, height, thickness, radian, distance, alignment, coarseness analysis, surface defect observation

7. Size inspection and surface defect observation of automobile parts, communication parts, mobile phone parts,3C parts and Connecter parts

天美MV乌鸦MV星空MV果冻MV|白晶晶mv果冻免费|九一制片制作白晶晶|九一果冻制品厂更新|九一果冻制作厂白晶晶Aluminum alloy castings, precision metal casing, cooling materials, laptop... Equal size measurement

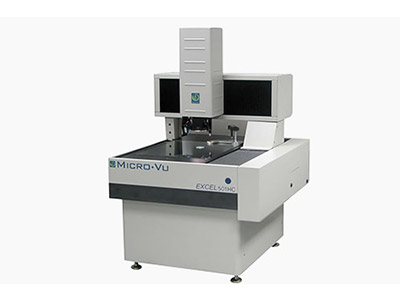

Basic hardware configuration:

Measuring stroke: X500×Y400×Z160 mm

XY axis accuracy: U2=2.8+L/150 micron (L= measured distance)

天美MV乌鸦MV星空MV果冻MV|白晶晶mv果冻免费|九一制片制作白晶晶|九一果冻制品厂更新|九一果冻制作厂白晶晶Z-axis accuracy: U1 =2.8+L/100 micron (L= measuring distance)

Optical ruler resolution: 1.0 micron, display 0.1 micron

天美MV乌鸦MV星空MV果冻MV|白晶晶mv果冻免费|九一制片制作白晶晶|九一果冻制品厂更新|九一果冻制作厂白晶晶Moving speed: manual

Bed material: aluminum alloy

天美MV乌鸦MV星空MV果冻MV|白晶晶mv果冻免费|九一制片制作白晶晶|九一果冻制品厂更新|九一果冻制作厂白晶晶Optical lens/magnification range: 6.5:1 optical magnification with 3X digital programmable segmental magnification lens / 20-720 times

Carrying weight: 10 kg

天美MV乌鸦MV星空MV果冻MV|白晶晶mv果冻免费|九一制片制作白晶晶|九一果冻制品厂更新|九一果冻制作厂白晶晶Dimensions: length 545 width 705 height 775 mm

天美MV乌鸦MV星空MV果冻MV|白晶晶mv果冻免费|九一制片制作白晶晶|九一果冻制品厂更新|九一果冻制作厂白晶晶Machine weight: 55 kg

Environmental requirements: Temperature 20±2°C, humidity 30-80%

Power requirements: dc voltage 93-264 VOLTS, frequency 47-63 Hz, maximum current 3 mA

Software configuration:

InSpec for Windows Geometry measurement software

This is a set of 32-bit geometry application software, using high-speed USB to communicate with the meter and the computer, the obvious function key configuration and fixed window arrangement provides users with a simple operation interface, even when the complex workpiece is easily qualified

Full field measurement tool

Contains a variety of highly sensitive full field measurement tools such as circles, contours, cloud lines, straight lines, O-rings, arcs and ellipses

Color image system

High resolution color video camera with white LED light source

天美MV乌鸦MV星空MV果冻MV|白晶晶mv果冻免费|九一制片制作白晶晶|九一果冻制品厂更新|九一果冻制作厂白晶晶Image processor

天美MV乌鸦MV星空MV果冻MV|白晶晶mv果冻免费|九一制片制作白晶晶|九一果冻制品厂更新|九一果冻制作厂白晶晶Fusion 256 color level identification program and 10:1 pixel resolution image processing program

Axial hand drive system

Instrument working environment

天美MV乌鸦MV星空MV果冻MV|白晶晶mv果冻免费|九一制片制作白晶晶|九一果冻制品厂更新|九一果冻制作厂白晶晶1. Temperature and humidity:

Temperature: 20-25℃, best: 22℃; Relative humidity: 50%-60%, best: 55%; The maximum temperature change rate of the equipment room is 10 ° C/hour. In northern China, the climate is dry, so humidifiers are recommended. It is recommended to use a dehumidifier in the humid climate of southern China

2. Heat calculation of the studio:

· To keep the equipment system in the working room operating in the optimal temperature and humidity space, the total indoor heat dissipation must be calculated, including the total heat dissipation of indoor equipment and instruments (ordinary lights can be ignored).

· Body heat dissipation: 600BTY/ hour/person

天美MV乌鸦MV星空MV果冻MV|白晶晶mv果冻免费|九一制片制作白晶晶|九一果冻制品厂更新|九一果冻制作厂白晶晶· Heat dissipation of the studio: 5/ m2

· Instrument storage space (L*W*H) : 2M ╳ 2M ╳ 1.5m

天美MV乌鸦MV星空MV果冻MV|白晶晶mv果冻免费|九一制片制作白晶晶|九一果冻制品厂更新|九一果冻制作厂白晶晶3, air dust content:

天美MV乌鸦MV星空MV果冻MV|白晶晶mv果冻免费|九一制片制作白晶晶|九一果冻制品厂更新|九一果冻制作厂白晶晶Keep the equipment room clean. The air contains at least 45,000 impurities greater than 0.5MLXPOV per cubic foot. Excessive dust in the air may cause resource read/write errors and damage to disks or read/write heads in disk drives.

4. Vibration degree of machine room:

天美MV乌鸦MV星空MV果冻MV|白晶晶mv果冻免费|九一制片制作白晶晶|九一果冻制品厂更新|九一果冻制作厂白晶晶The vibration degree in the machine room shall not be higher than 0.5T, and the machines that produce vibration in the machine room shall not be placed together, because the vibration will loosen the mechanical part, joint and contact part of the host panel in the machine, and cause the machine to be abnormal.

天美MV乌鸦MV星空MV果冻MV|白晶晶mv果冻免费|九一制片制作白晶晶|九一果冻制品厂更新|九一果冻制作厂白晶晶Three, power supply:

天美MV乌鸦MV星空MV果冻MV|白晶晶mv果冻免费|九一制片制作白晶晶|九一果冻制品厂更新|九一果冻制作厂白晶晶AC220V / 50 hzac110v / 60 hz
