Electric PPG-12153E Battery Thickness Gauge

Product Introduction:天美MV乌鸦MV星空MV果冻MV|白晶晶mv果冻免费|九一制片制作白晶晶|九一果冻制品厂更新|九一果冻制作厂白晶晶Ⅰ. Equipment IntroductionThis equipment is applicable to thickness measurement for soft packaging power battery cells, but also can detect other kinds of non-battery flexible sheet products. Servo mot

Related to recommend

  • Manual PPG-20153M Battery Thickness Gauge
  • Product Features
  • Measuring Tool
  • Work Environment

. Equipment Introduction

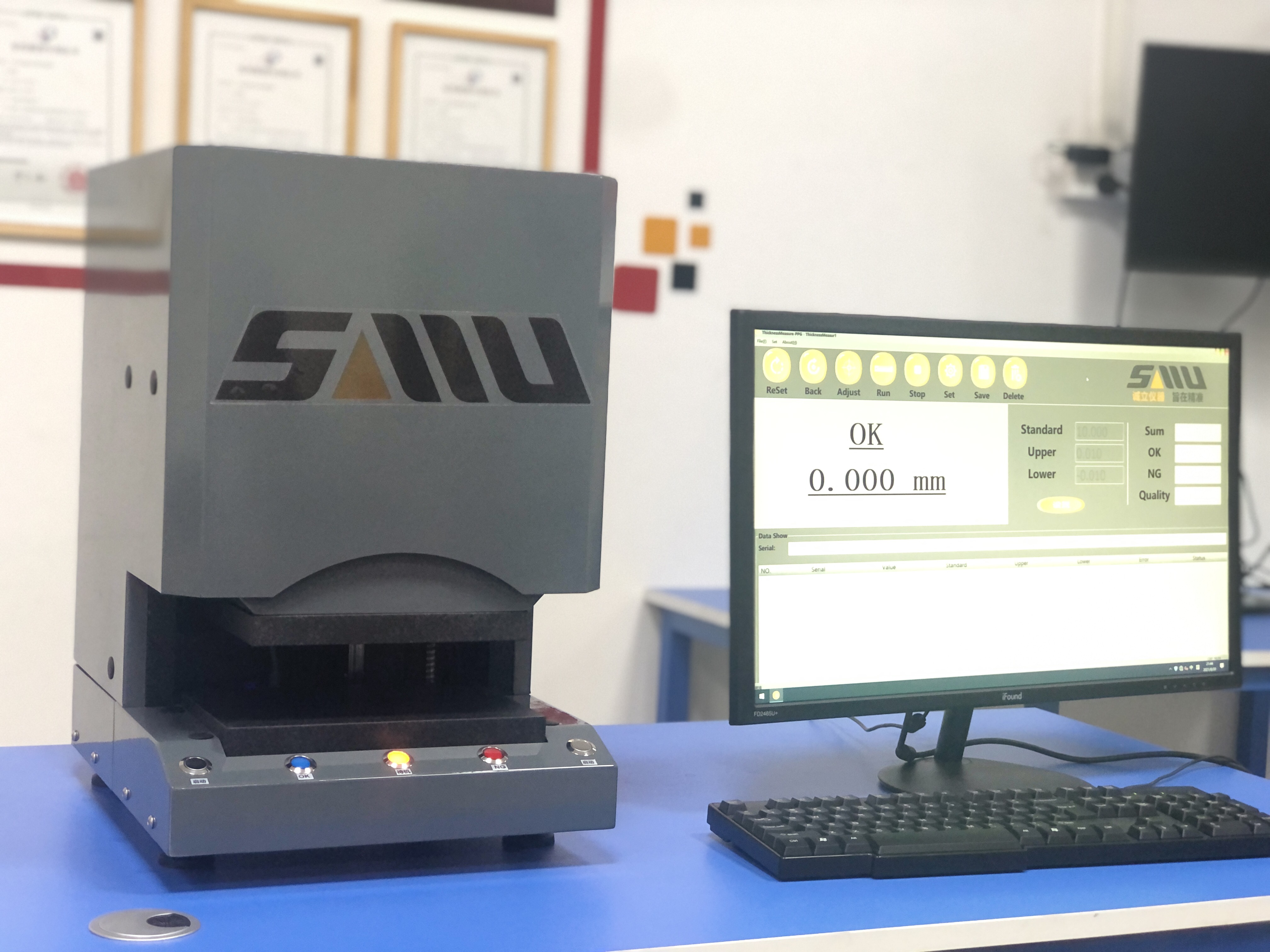

This equipment is applicable to thickness measurement for soft packaging power battery cells, but also can detect other kinds of non-battery flexible sheet products. Servo motor and sensor are adopted for lifting to ensure that the test pressure is 500g.

. Operation Steps

1Manually put the battery on the test platform of the

thickness measuring machine;

2Press the START button and press the test plate

down for test;

3Lift the test plate after the completion of test;

4Remove the battery by manual, the whole steps

are finished, then the next test will be entered.

. Main Components of the Equipment

1 Sensor: optical transmission

2 Programmable controller: independently developed by Chengli

3 Instrument: spraying and baking on the surface

4 Components material: aluminum, steel and Level 00 Jinan green marble.

5 Safety cover: sheet metal

. Technical Parameters of the Equipment

S/N

Item

Configuration

1

Effective test area

L120mm×W150mm

2

Thickness test scope

0-30mm

3

Working distance

80mm

4

Comprehensive measurement error

≤0.01mm

5

Flatness of marble

≤0.003mm

6

Test pressure

500g

7

Pressure mode

With counterweight, the pressure error is ±5%

8

Pressurization time

2±0.5S

9

GR&R

10%

10

Working cycle of the system

≤8S

11

Linear scale resolution

0.001mm

12

Voltage

AC220V50Hz

13

Transmission mode

Guide rail + screw rod + servo motor

14

Weight

40kg

15

Operating system

PPG special software

. Basic equipment requirements and main component requirements:

5.1. Equipment color: white and black;

5.2. Working temperature: 23±2, humidity: 40-70%, vibration: <15Hz

. Installation, Commissioning and Training Requirements

6.1. The relevant power supply shall be prepared by the Buyer to the installation site;
